Ionic 5 Menu Sample App

In this tutorial, you will learn how to create a simple Ionic 5 mobile application with a menu in Appery.io.

Before You Start

  • Tutorial level: beginner; your first mobile app.
  • Prerequisites: an Appery.io account.

You can also try this simple Ionic 5 mobile application with a menu in Appery.io:

Downloads and Resources

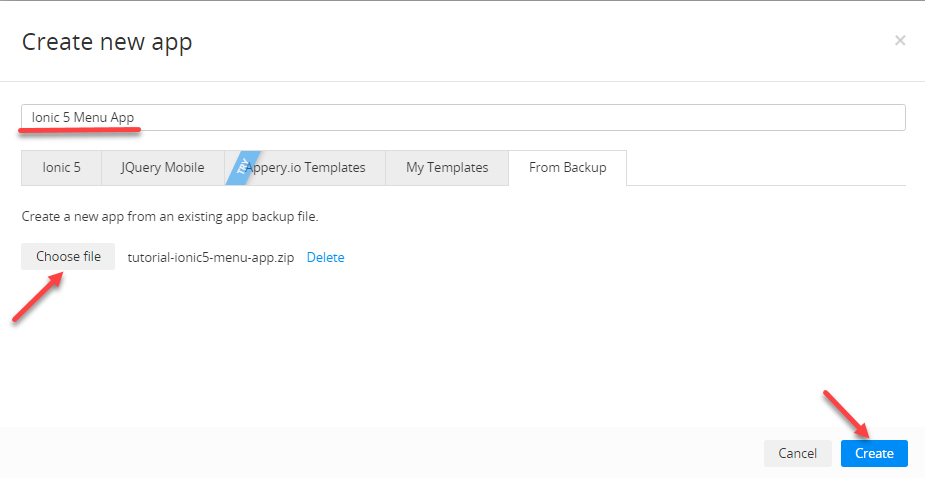

You can also try it yourself by creating from the backup:

  1. Download the app backup file.
  2. Click Create new app.

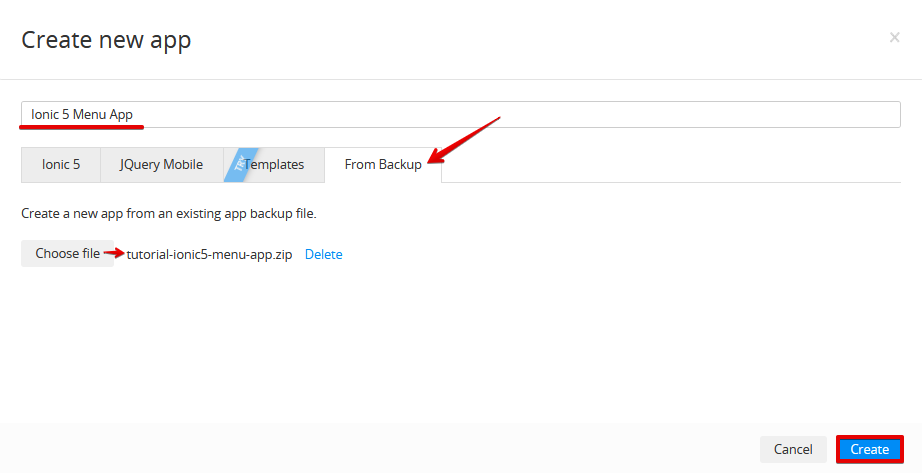

  3. Click From backup and select the project backup file on your drive.
  4. Type in the app name.
  5. Click Create:

But if you are interested in the detailed tutorials, please follow the steps below.

Creating New App

  1. From the Apps tab, click Create new app.

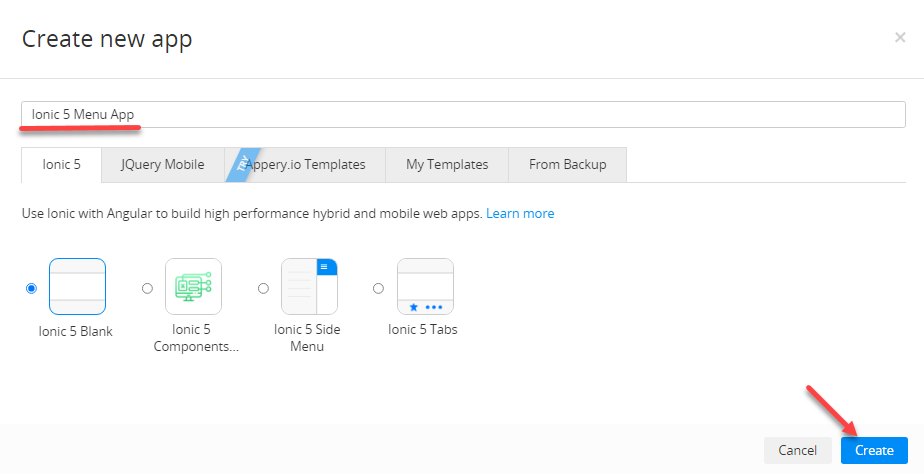

  2. Select Ionic 5 > Ionic 5 Blank as the application type, enter an app name (e.g. Ionic 5 MenuApp), and click Create:

Building App UI

  1. By default, there is only one Screen1 page in a newly created Appery.io app so, we will need to add another screen manually: perform Create new > Page and click Create Page to confirm:
Creating a new PageCreating a new Page

Creating a new Page

Also, we need to create some simple UI on both screens to be able to differentiate between them:

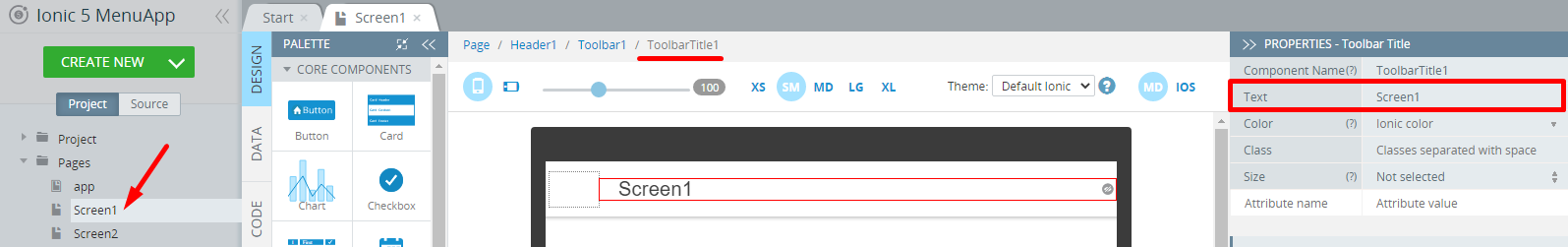

  1. On Screen1 (can be selected on the Project view on the left), click on the Toolbar title component and enter Screen1 for its Text property:

📘

You can select and manage components using Breadcrumbs or the OUTLINE view:

  1. Also, set the Page Footer property to False as we won't need the bottom app toolbar:
  1. Repeat the above steps for Screen2:
Screen2Screen2

Screen2

Now, when we have two different screens, it's time that we add a menu to the app.

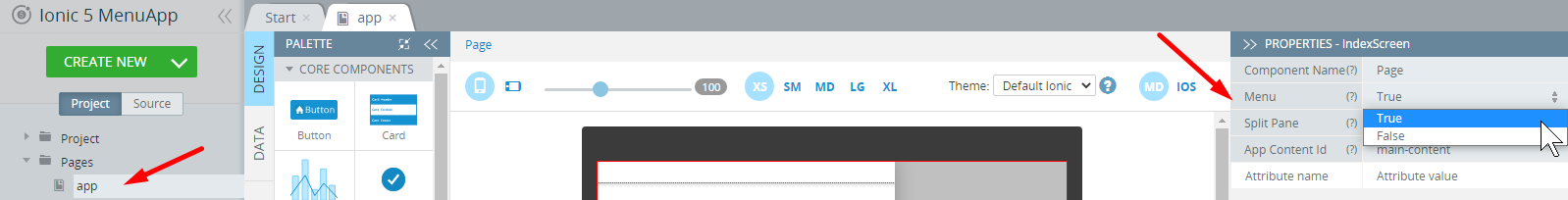

  1. To do it, open the app page and, under the IndexScreen PROPERTIES panel, select True for the page Menu property:
Enabling MenuEnabling Menu

Enabling Menu

  1. Then, drag & drop a List component from the PALETTE panel:
Adding List componentAdding List component

Adding List component

  1. Name both list Item Labels to Screen 1 and Screen 2 respectively by selecting them one by one and replacing the generic label text:
Defining List itemsDefining List items

Defining List items

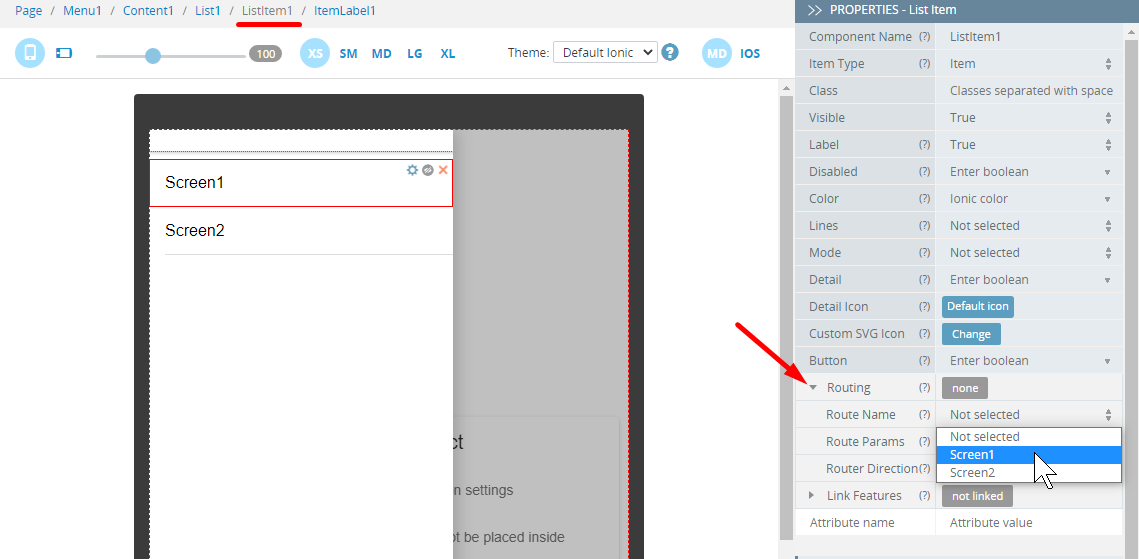

  1. To specify navigation for both List item components, select the Screen 1 List Item first, then, under the PROPERTIES panel, expand Routing and set the Route Name to Screen 1:
Defining routing for List itemsDefining routing for List items

Defining routing for List items

  1. Similarly, define the Route Name value of List Item 2 as Screen 2.
  2. Finally, to make switching between pages convenient, let's add menu buttons to both pages.
    To do it, on the Screen1 page, from the PALETTE panel, drag & drop the Button component to the [ToolbarButtons](Toolbar buttons) section and select IonicMenu Button as its Component Type property:
  1. Switch to the Screen2 page and perform the same.

Finishing Touches

You might also like to beautify your menu app UI:

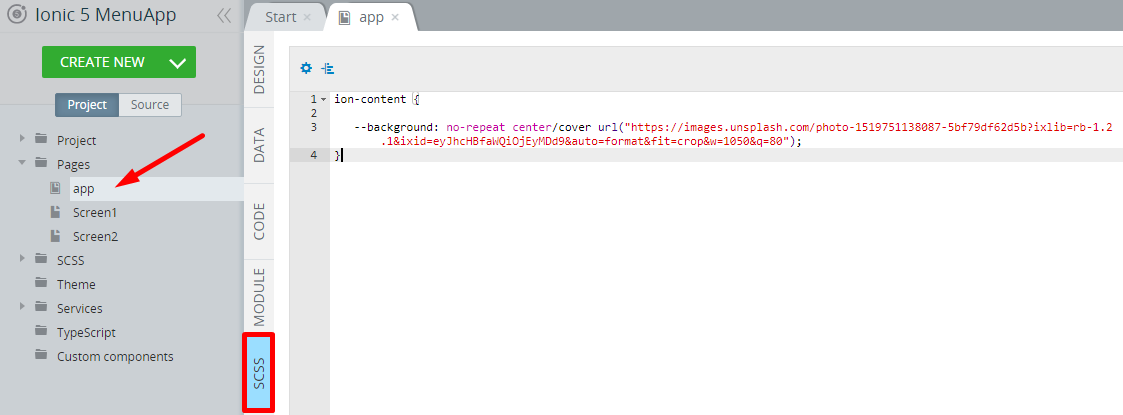

To do it, add the below code to the SCSS panel panel of the app page:

ion-content {

   --background: no-repeat center/cover url("https://images.unsplash.com/photo-1519751138087-5bf79df62d5b?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9&auto=format&fit=crop&w=1050&q=80");
}

The tab should look like this:

Similarly, add the below code to the SCSS panel panel of the Screen1 page:

ion-content {

   --background: no-repeat center/cover url("https://images.unsplash.com/photo-1530103862676-de8c9debad1d?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9&auto=format&fit=crop&w=1050&q=80");
}

And the following code to the SCSS panel panel of the Screen2 page:

ion-content {

   --background: no-repeat center/cover url("https://images.unsplash.com/photo-1551972873-b7e8754e8e26?ixlib=rb-1.2.1&auto=format&fit=crop&w=564&q=80");
}

App Testing

Click the TEST button in the App Builder Toolbar to launch the app in the browser and wait for the app to load. When the app starts, tap the menu selection. Make sure that switching between the screens works as expected:

Testing the AppTesting the App

Testing the App

When your app version is ready, you might also like to test it on the device.

👍

Appery.io Tester App

A great option to quickly test the app on the device is to use our Appery.io Tester app.
The app is free and available for both iOS and Android.
You can check out this page to learn more about using the Appery.io Tester app.

👍

Video Tutorial: Adding Side Menu to Ionic 5 App

You can also check out this video guide for detailed instructions on how to add a side menu to your Ionic 5 application:

📘

You can also watch our Appery.io Community video to learn how you can add a menu to a mobile application in Appery.io:
